Small neck preform mould -48cavity Design & Manufacturing

Home / Molds / Preform Mould / Small neck preform mould -48cavity
Small neck preform mould -48cavity
  • Small neck preform mould -48cavity
  • Small neck preform mould -48cavity

Small neck preform mould -48cavity

Preform mould , perform mold ,Bottle perform mold , valve gate perform mould , short tail perform mould , long tail perform mould , 12 cavity perform mould , 24 cavity perform mould , 32 cavity perform mould , 48 cavity  perform mould , 64 cavity perform mould , 72cavity perform mould.

Perform mould neck type   : 1716 、1810、1881 、30/25  、 29/25  、26/22 、38 mm  neck PET perform mould.

Inquiry
PREV：Small neck preform mould -72cavityNEXT：Small neck preform mould -32cavity
  • Specification
  • Q & A
  • Products Recommended

  • Products Parameter

    In the packaging solution project ,the material account for 75% of the total cost . the practice mainstream is to reduce the perform weight in order to save cost and protect the environment. By reforming the neck ,it can reduce the perform weight and save the material cost .

    1. 30/25  standard

    2.  PCO 1881(3.8G)

         PCO 1881(3.9G)

         PCO 1810(5.1G)

    inserts
    Gate inserts：High quality stainless steel with highly polished surfaces.
    Cores and cavities：High quality stainless steel with vacuum quenching heat treatment .
    Neck rings：High quality stainless steel with water cooled channel and air channel.

     Well-Balanced Layout of Flow Manifolds

    - The special layout of flow manifolds and nozzle for PET

    - Short cycle time

    - Lower AA levels

    - Lower energy consumption

    - Reduced hold time and pressure

    - Reduced maintenance cost.

    Flow manifold : stainless steel  4cr13 , anti-corrosion in whole life ; Hot nozzle  use PCT (USA);   valve needle use punch industry japan ;heat insulation cap use Du pont  (USA);heating coil use ROTFIL(Italy)or HOTSET(Germany).

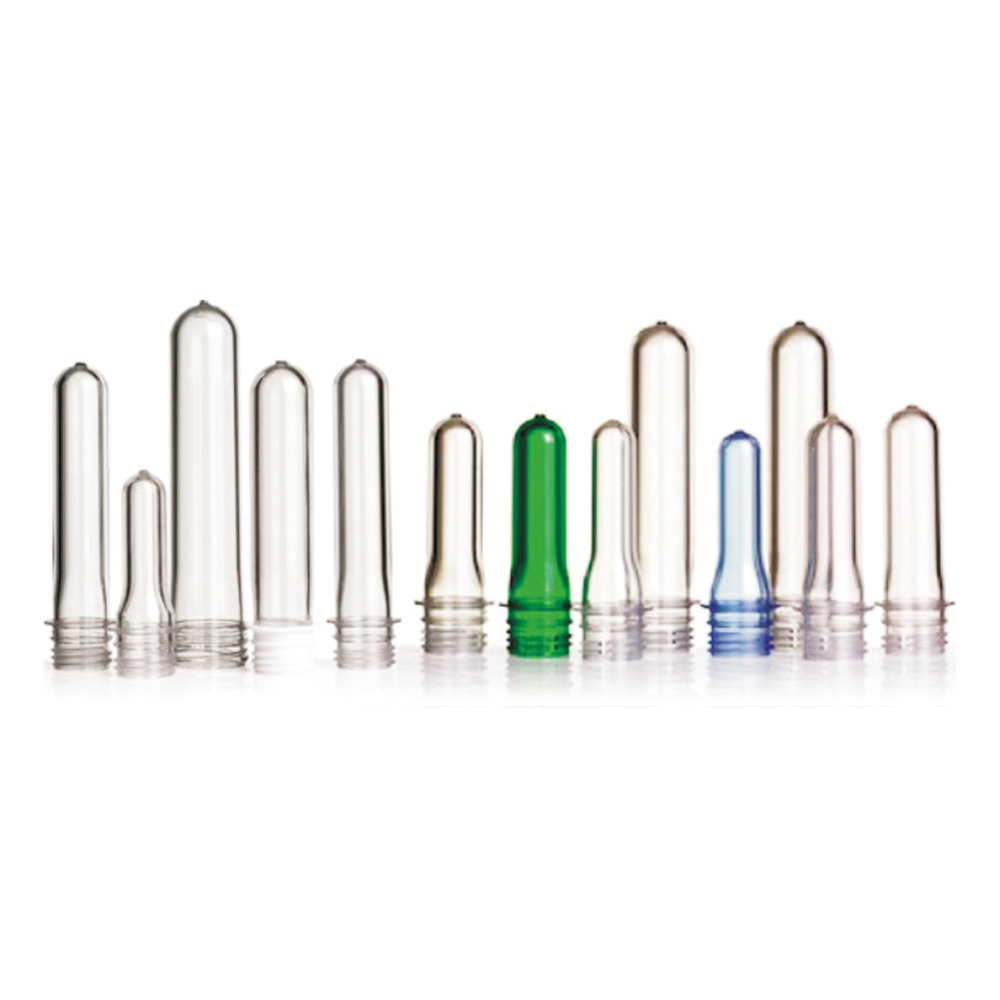

    High-Quality PET perform

    No crystallization

    No scratch

    High quality surface

    Low acetaldehyde (AA) level

    minimum eccentricity

    consistent weight

    flashless split-lines

    To meet the different requirements for the PET preform from different customers。we always play the advantage of our  and trying our best to offer professionalization, individuation and 360° service

In good quality, and in good faith

We are famous Small neck preform mould -48cavity maker, manufacturers, and suppliers in China. Products are widely used in food packaging, daily packaging, chemical packaging, agricultural packaging, medical packaging and other industries. We help customer design Small neck preform mould -48cavity, manufacturing which fully reflects the continuous innovation tech. OEM/ODM production & service offered. Better Solution at Liangdian Mould.
