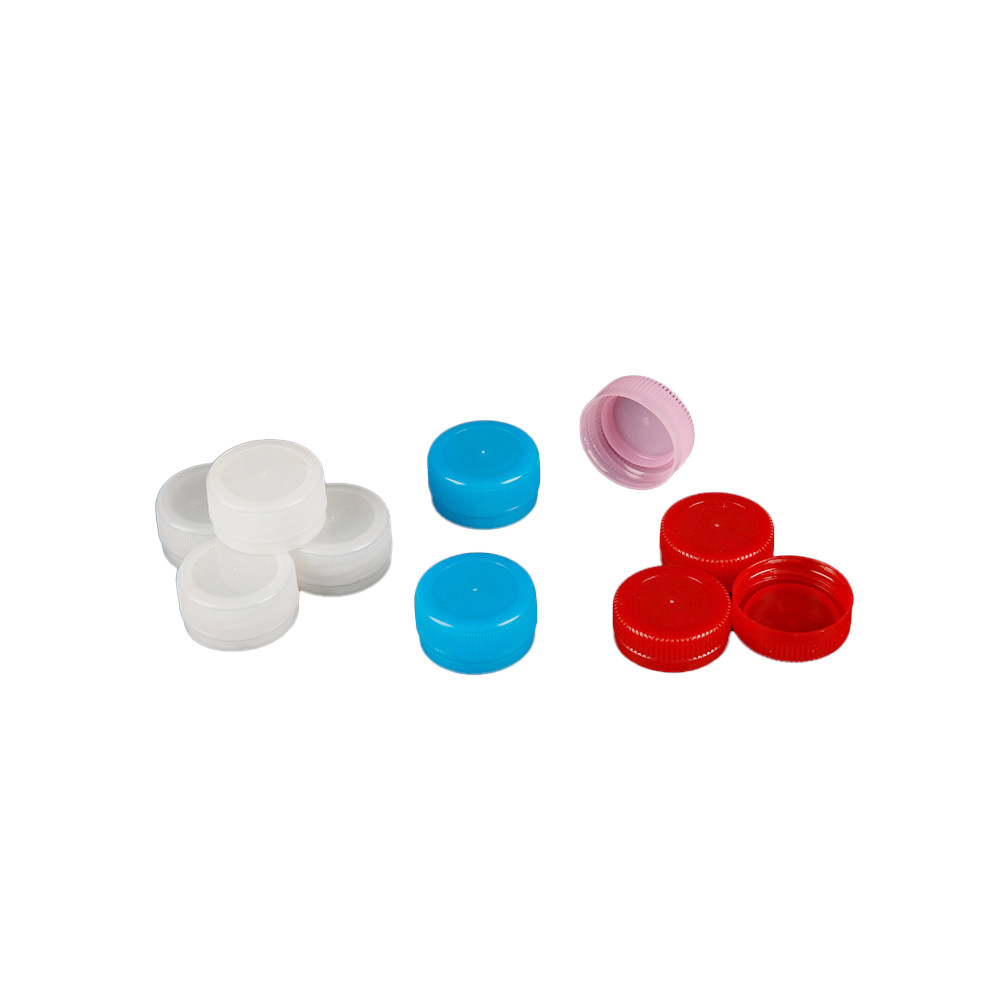

Water bottle cap mould

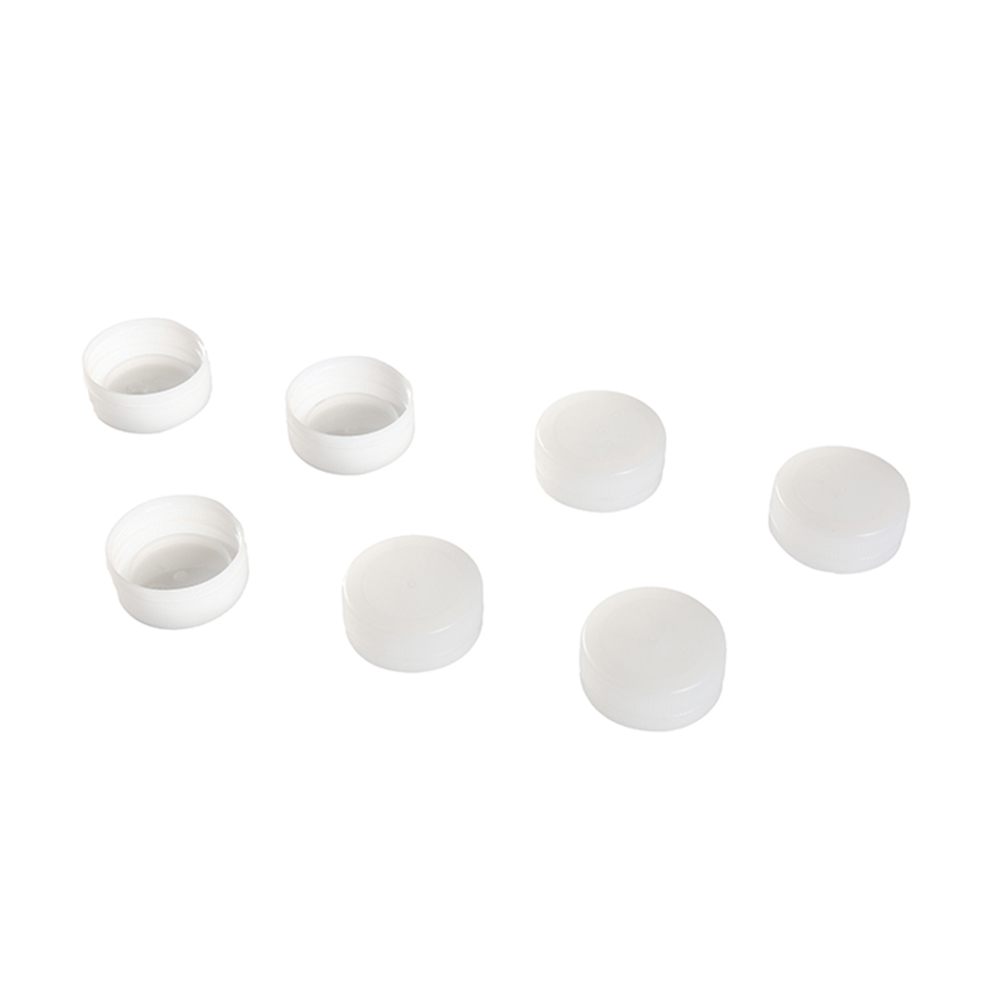

Mould name

Mineral water cap mould

Mould cavity

8 cavity , 12 cavity ,16 cavity , 24cavity , 32cavity , 48cavity , according to machine size or customer’s request

Insert material

Cavity : S136,   Hardness :47-50°  ;

Core:H13 ,Hardness 47-50 °;

Core surface need nitriding or QPQ treatment  ，It is according to the mould parts hardness request ,after treatment the surface hardness around 60-90 °

Mould plate material

P20  718  S136  according to client’s request

Runner type

Cold runner / hot runner , according to client’s request

Hot runner system

The temperature difference under controlling within1℃difference it makes sure that the raw material cannt be burnt inside of hot runner.the wastage will be kept less than 1% .

Cap neck size

3025,2925,38mm …..

Cap type

Different kind of anti-theft type cap

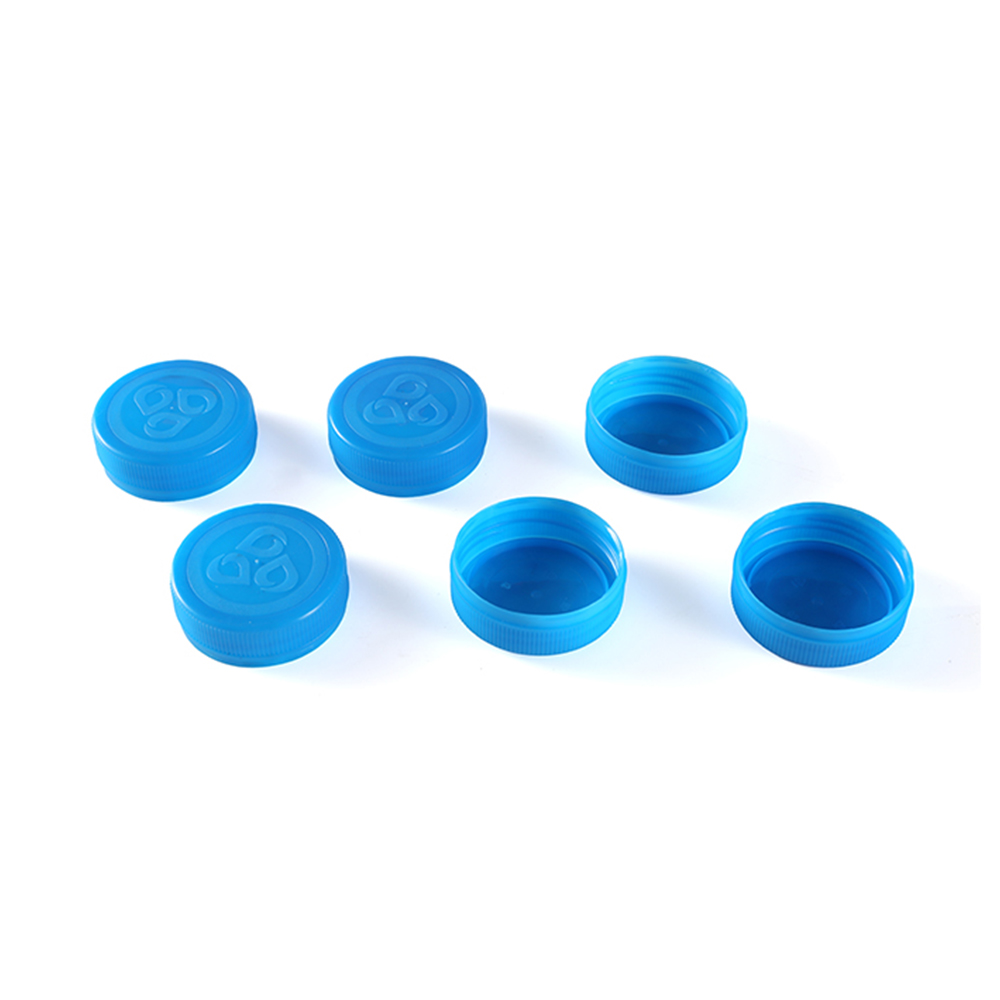

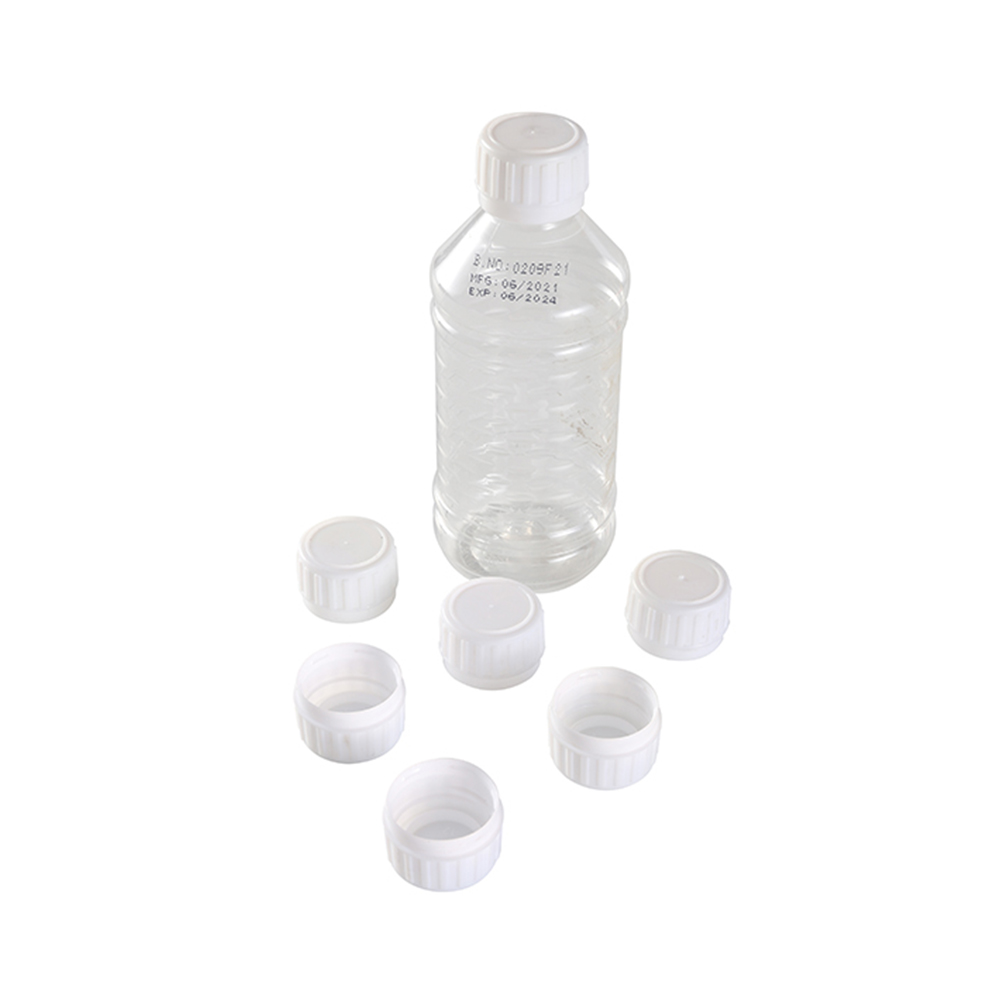

Mould name

Beverage cap mould

Mould cavity

18 cavity , 12 cavity ,16 cavity , 24cavity , 32cavity , 48cavity , according to machine size or customer’s request

Insert material

Cavity : S136,   Hardness :47-50°  ;

Core:H13 ,Hardness 47-50 °;

Core surface need nitriding or QPQ treatment  ，It is according to the mould parts hardness request ,after treatment the surface hardness around 60-90 °

Mould plate material

P20  718  S136  according to client’s request

Runner type

Cold runner / hot runner , according to client’s request

Hot runner system

The temperature difference under controlling within1℃difference it makes sure that the raw material cannt be burnt inside of hot runner.the wastage will be kept less than 1% .

Cap neck size

PCO1810, 1881, ALCOA1716 ….

Cap type

Different kind of anti-theft type cap
