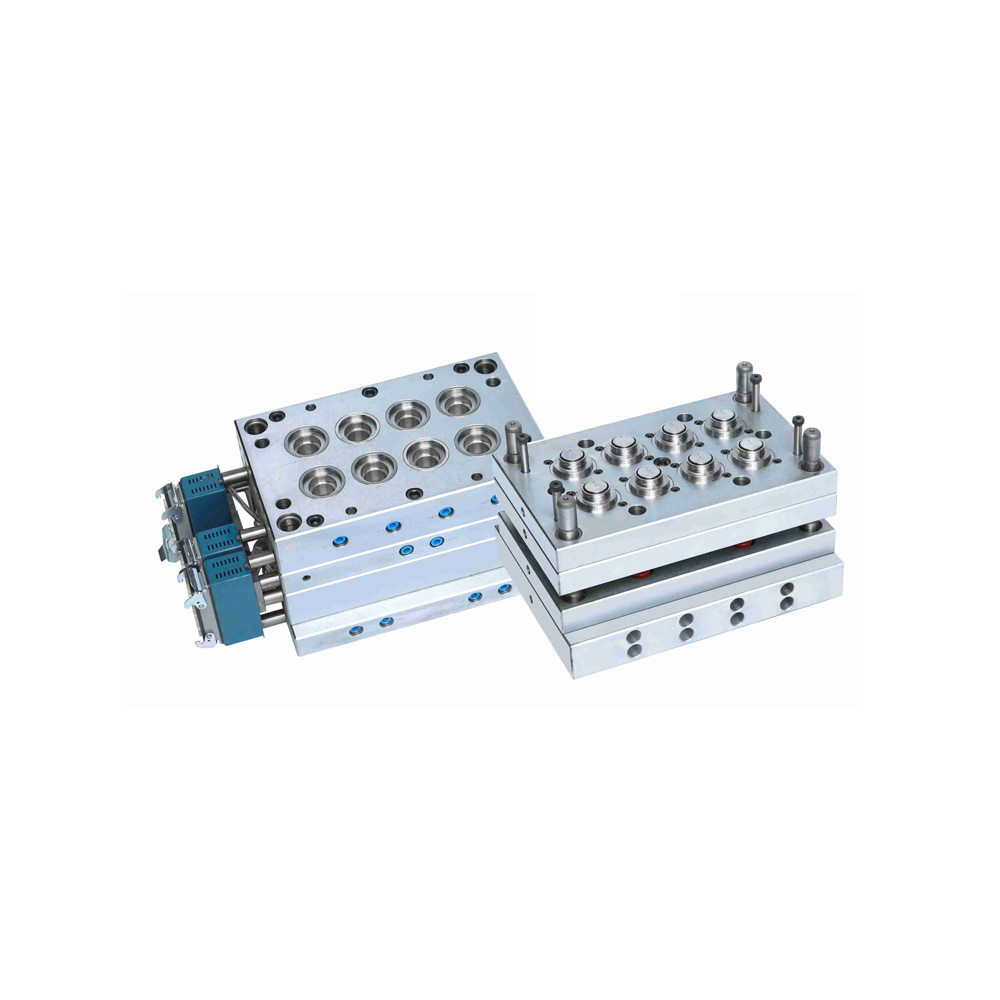

5 gallon cap mould

Mould name

5 Gallon water bottle  cap mould

Cap neck size

55mm

Cap material

PE

Mould cavity

8cavity ,16cavity,24cavity,32cavity,48cavity

Insert material

Cavity : S136,   Hardness :47-50°  ;

Core:H13 ,Hardness 47-50 °;

Core surface need nitriding or QPQ treatment  ，It is according to the mould parts hardness request ,after treatment the surface hardness around 60-90 °

Mould plate material

P20  718  S136  according to client’s request

Runner type

Cold runner / hot runner , according to client’s request

Hot runner system

The temperature difference under controlling within1℃difference it makes sure that the raw material cann’t be burnt inside of hot runner. the wastage will be kept less than 1% .

Hot runner made by our own factory.You also can choose YUDO,SINO,HUSKY or other famous brand hot runner system as your choice.We have cooperation with all the hot runner system supplier.

Mould spare parts

8 cavity : 1 set spare parts  ; 16 cavity :2 sets spare parts;…….

Warranty

1year or 1million shots

Mould package

Wooden box

Mould  delivery time

45-60days

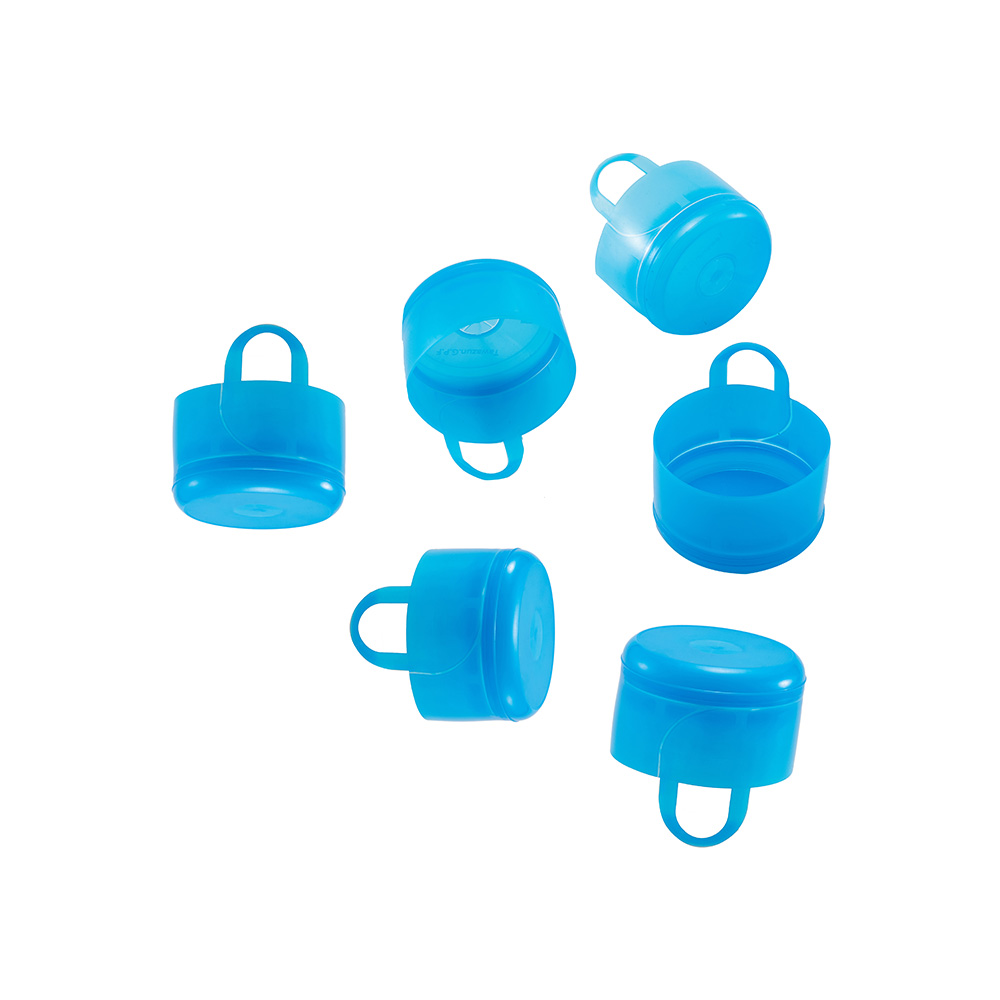

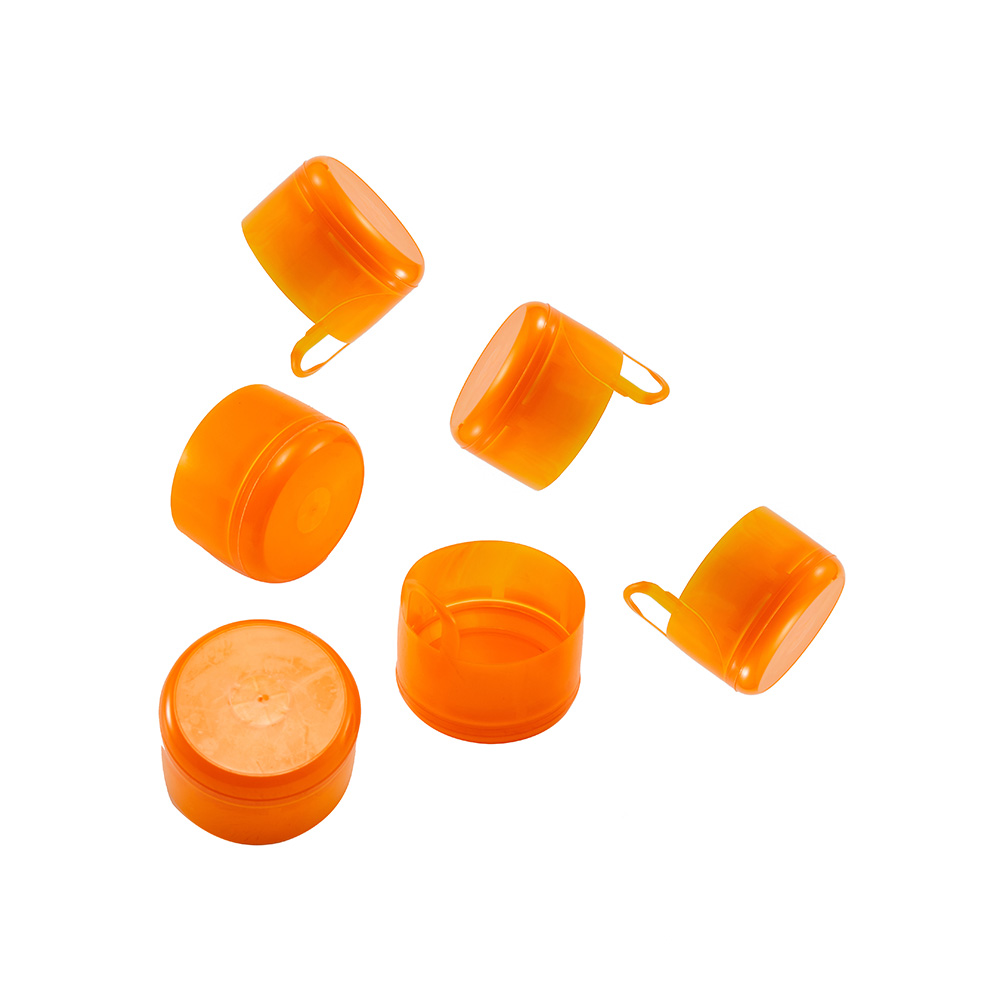

Application

3, 4, 4.5 and 5 gallons water cooler bottles for your home or office.

Closure Type

One-piece type without inner plug , three-piece type  include cap main body with foam liner  ,cover and  inner plug

Cycle time

10-15seconds on high speed machine.18-22Seconds run on the standard machine.
