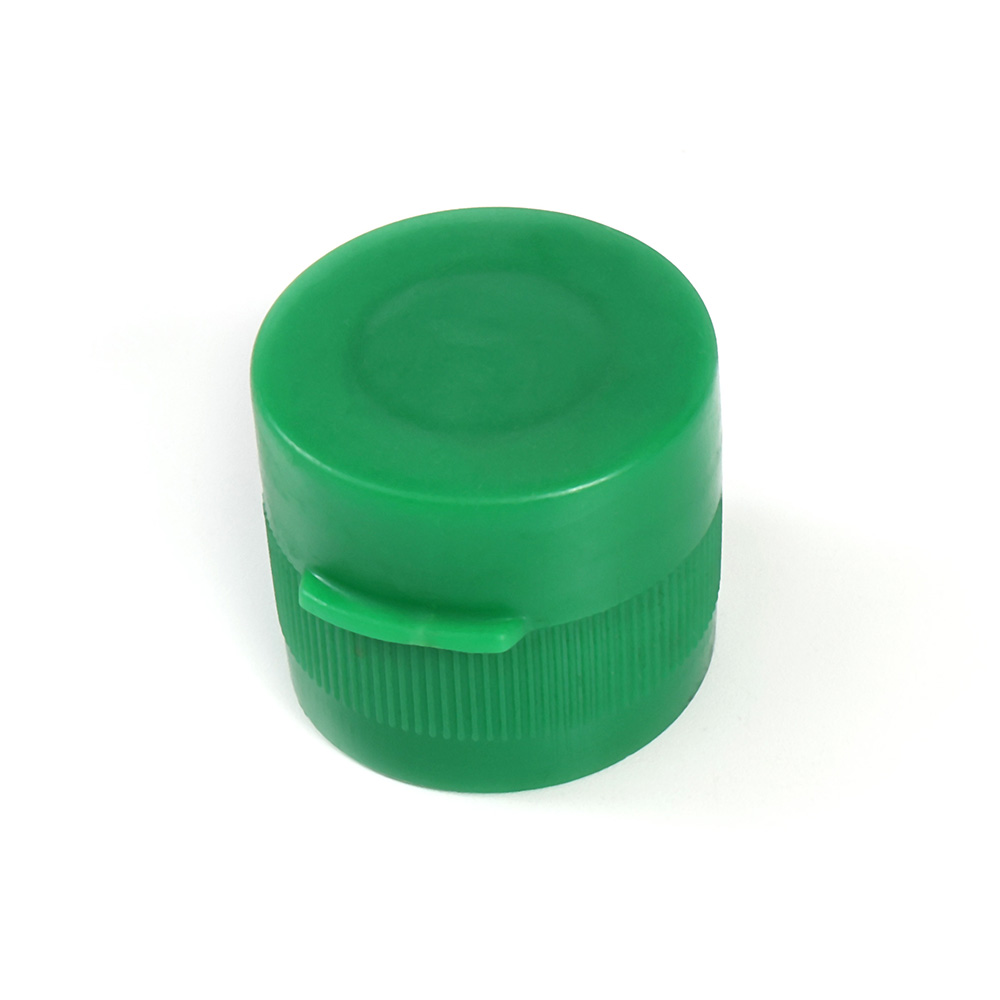

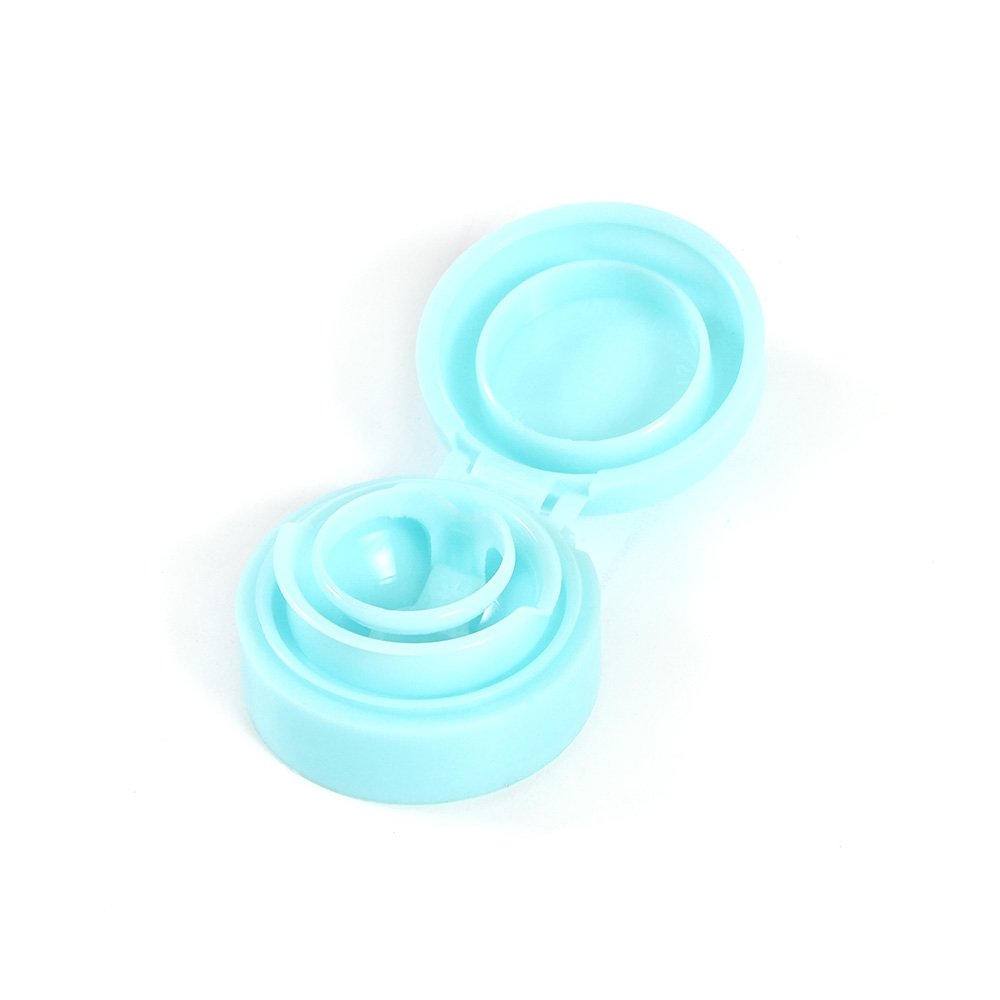

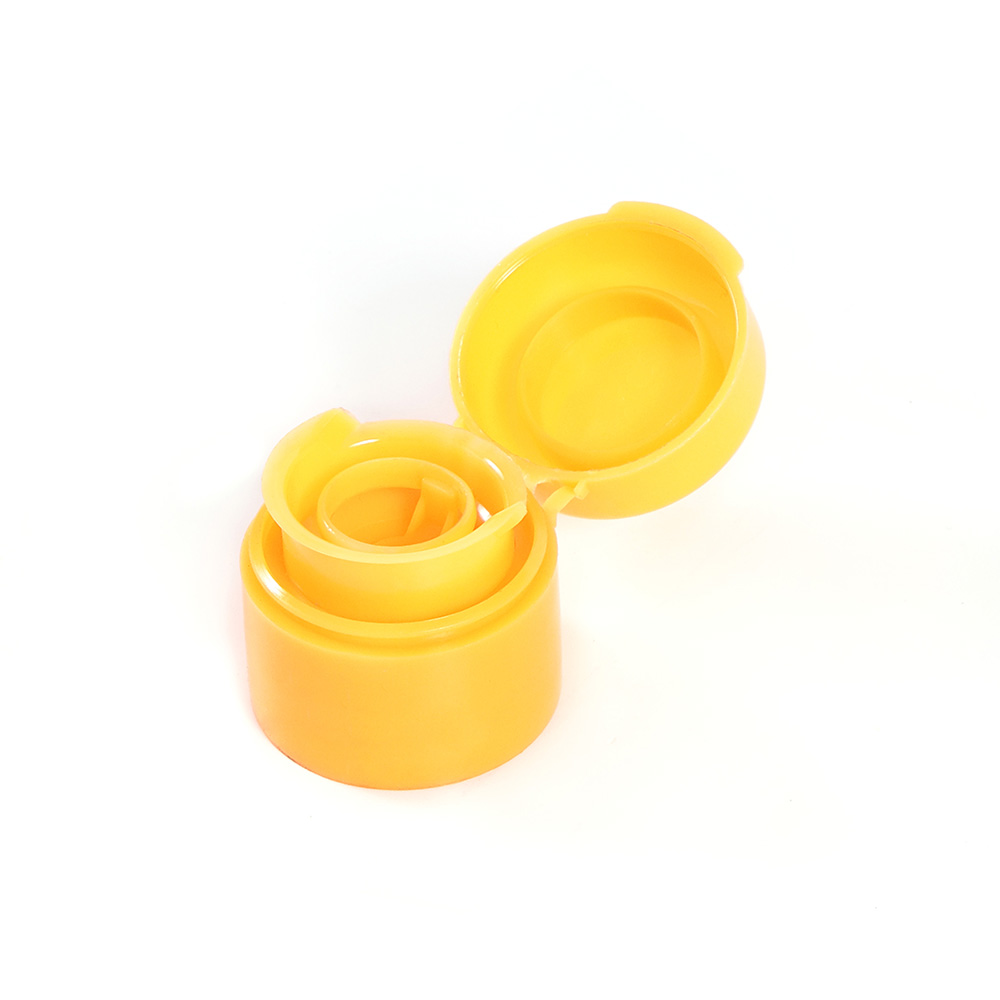

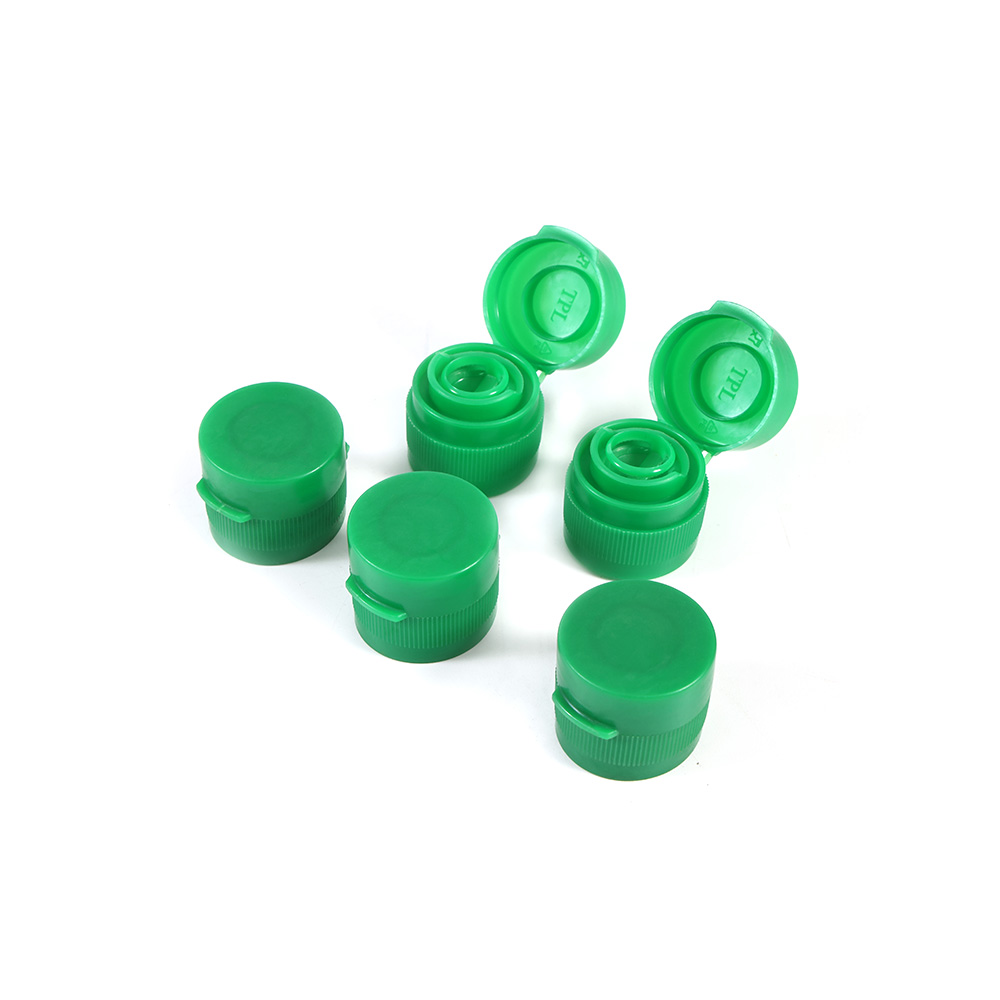

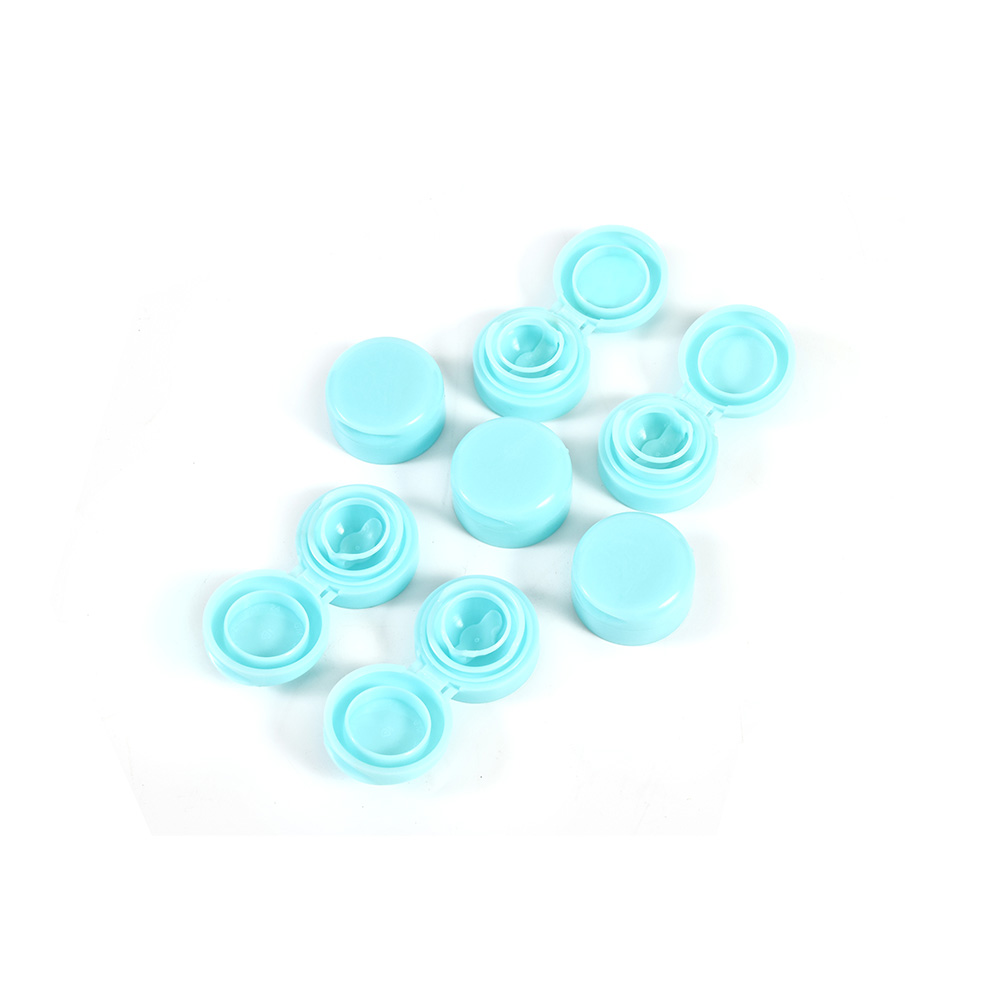

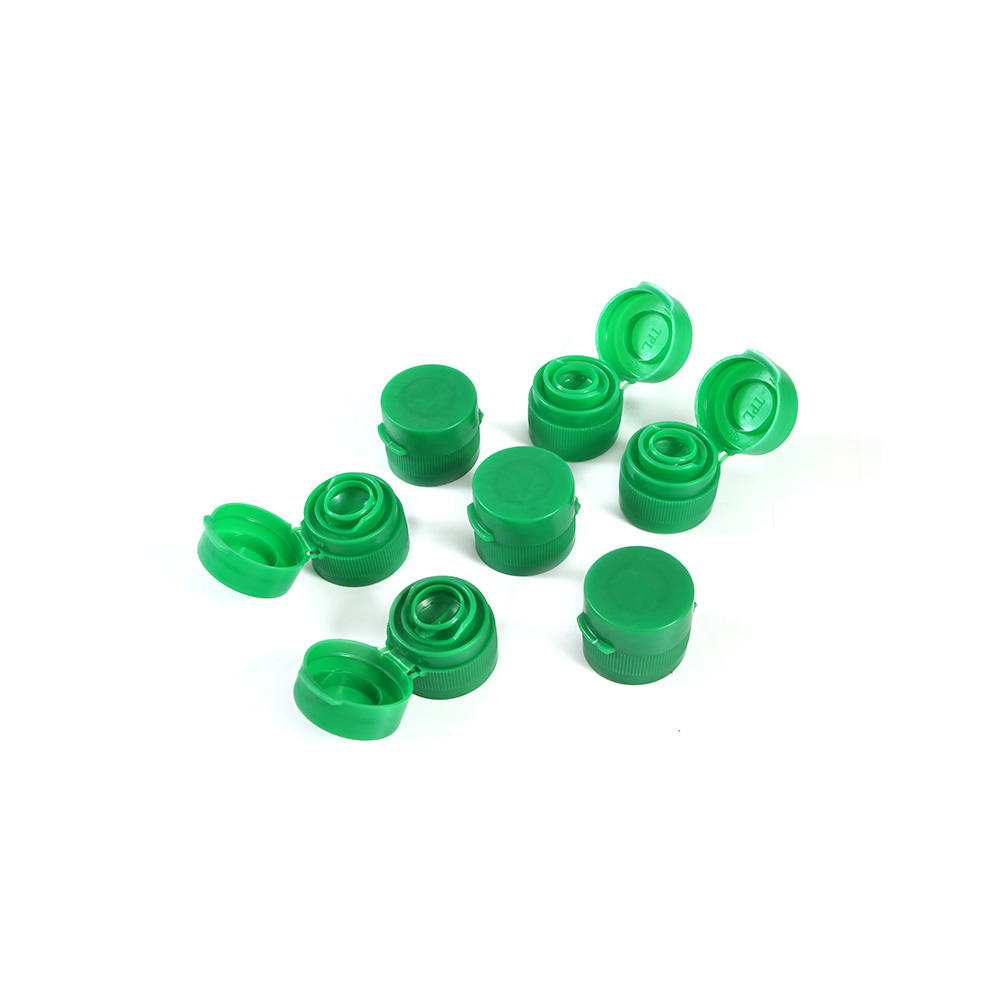

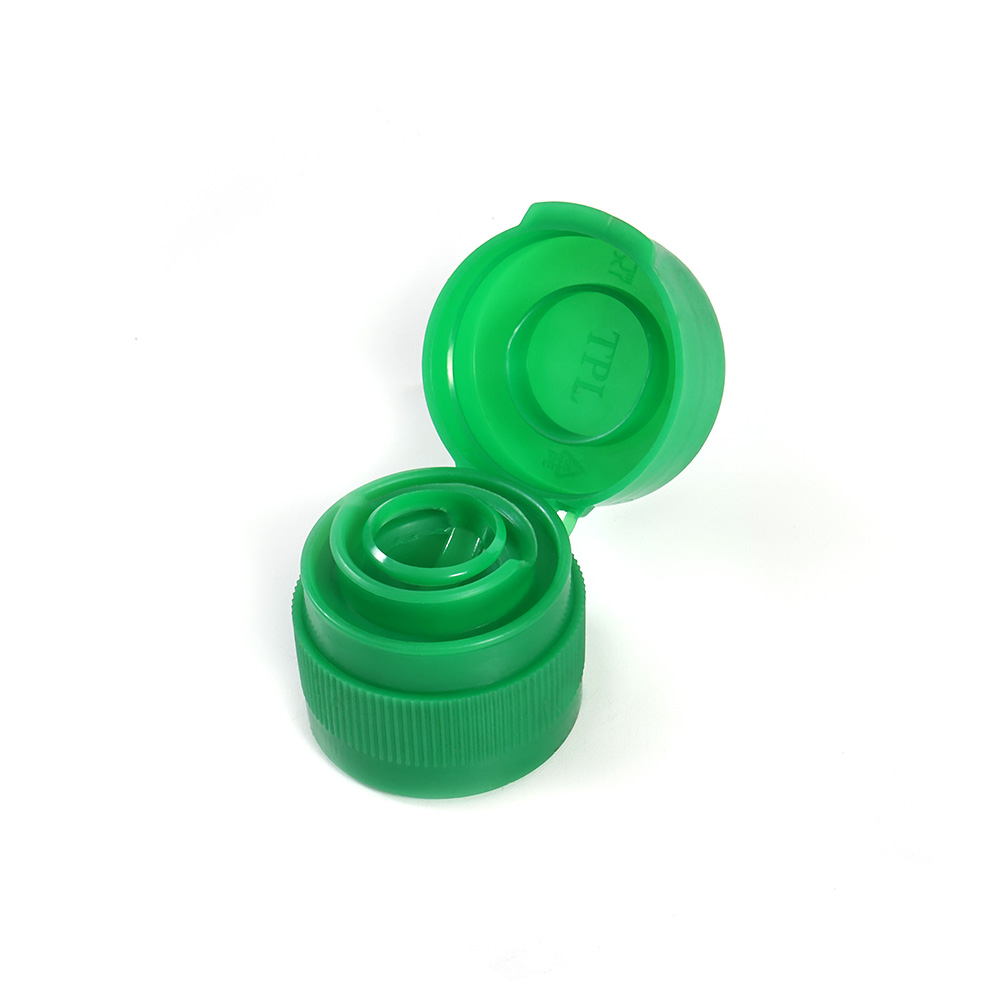

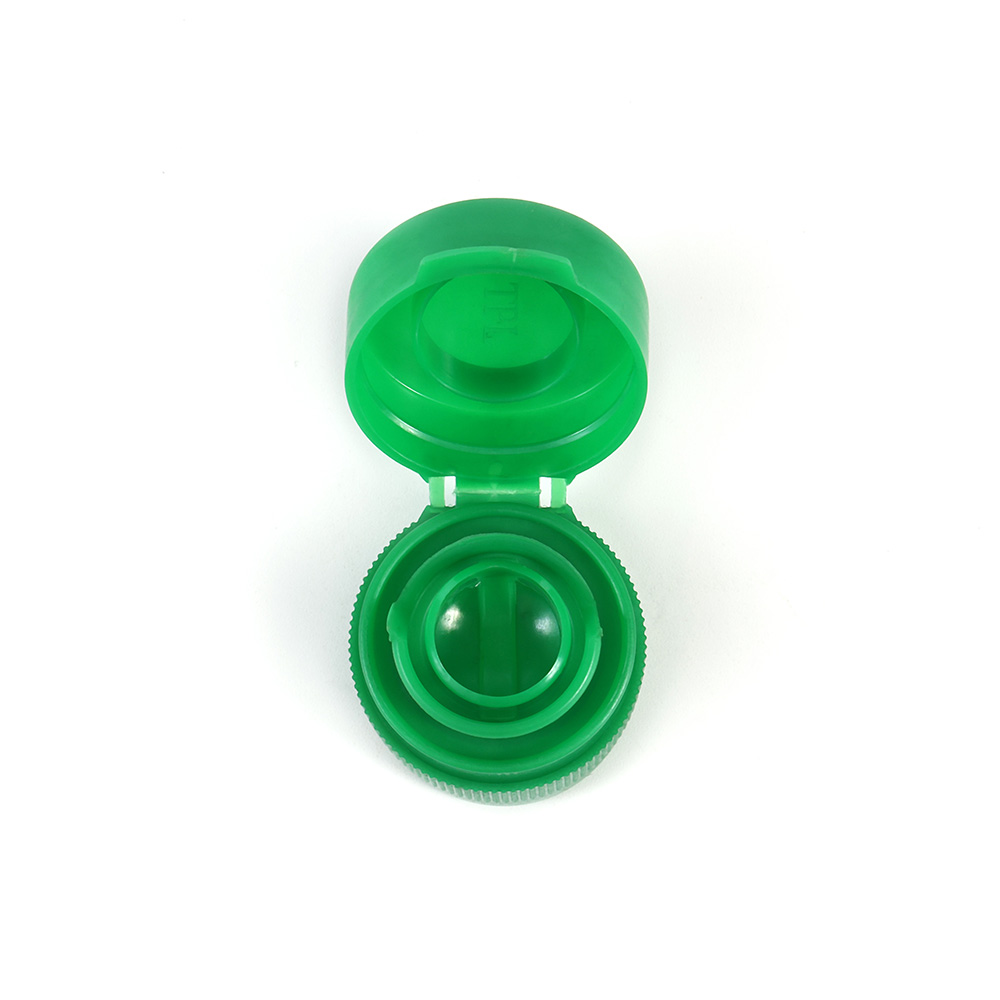

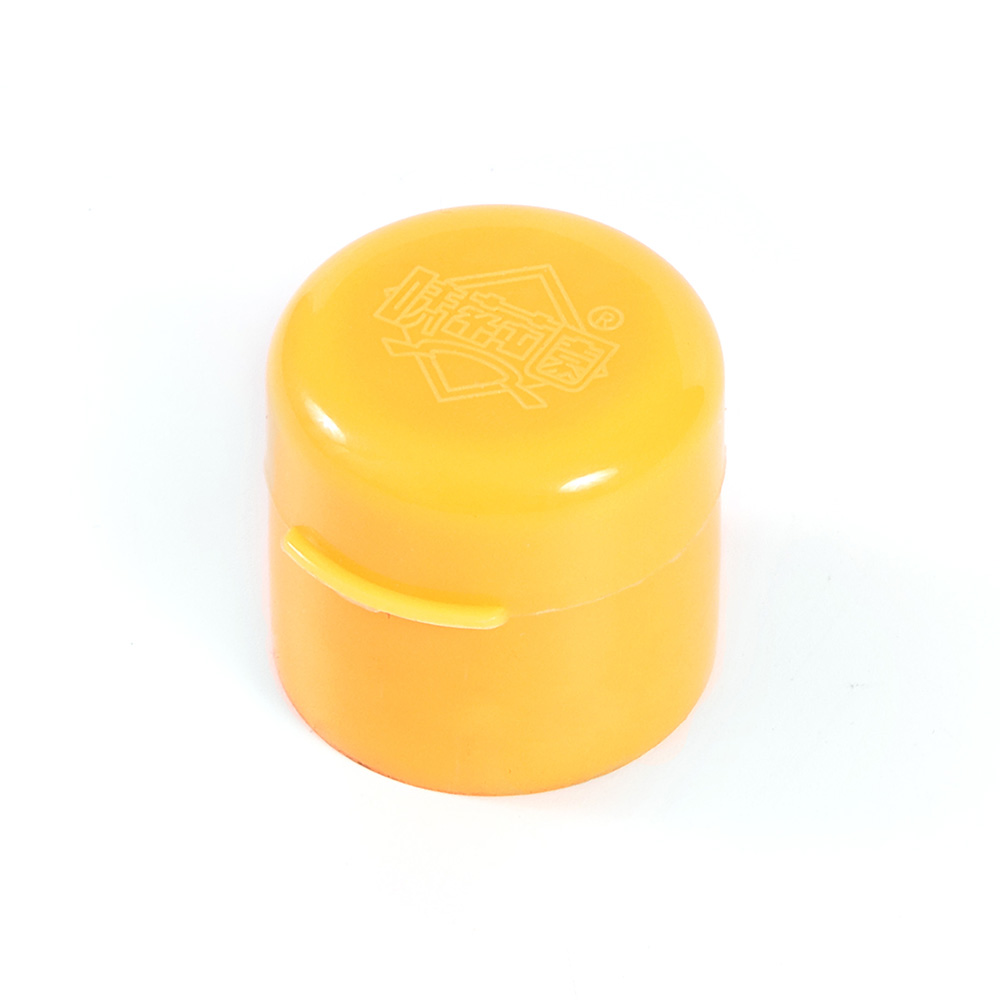

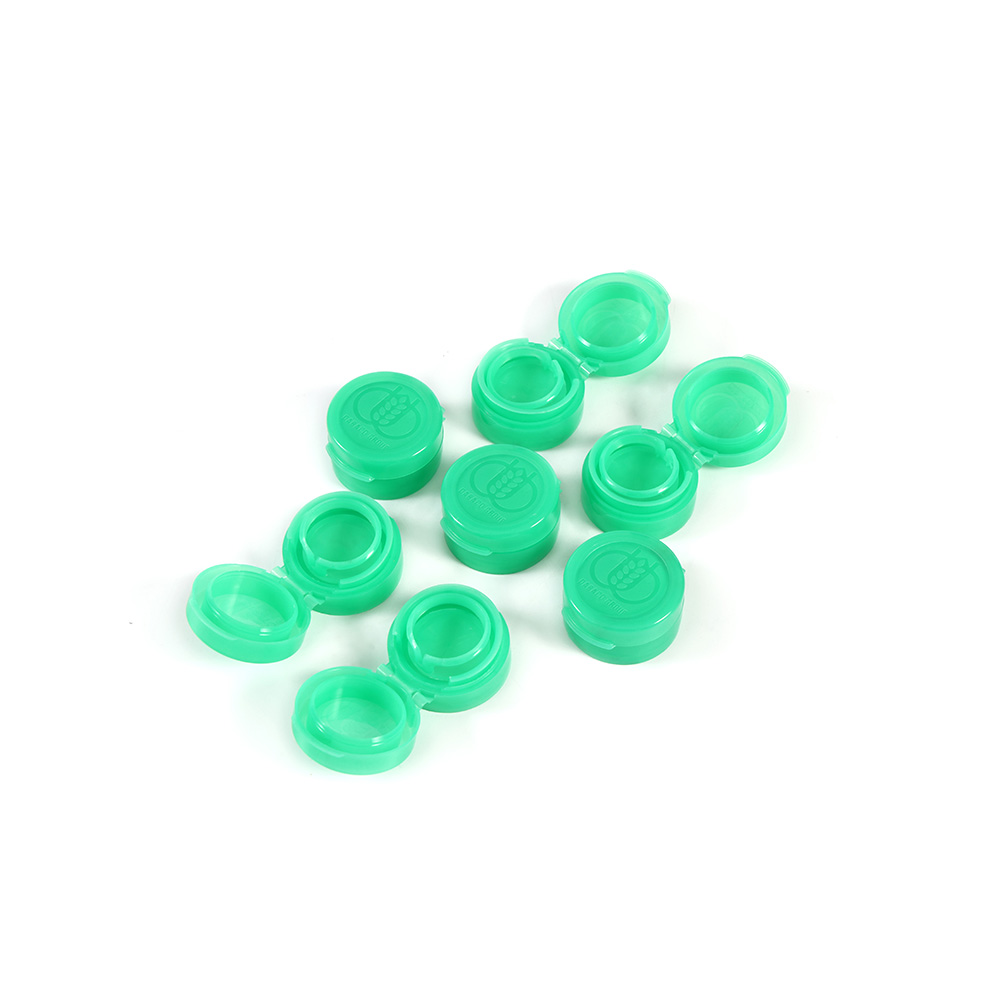

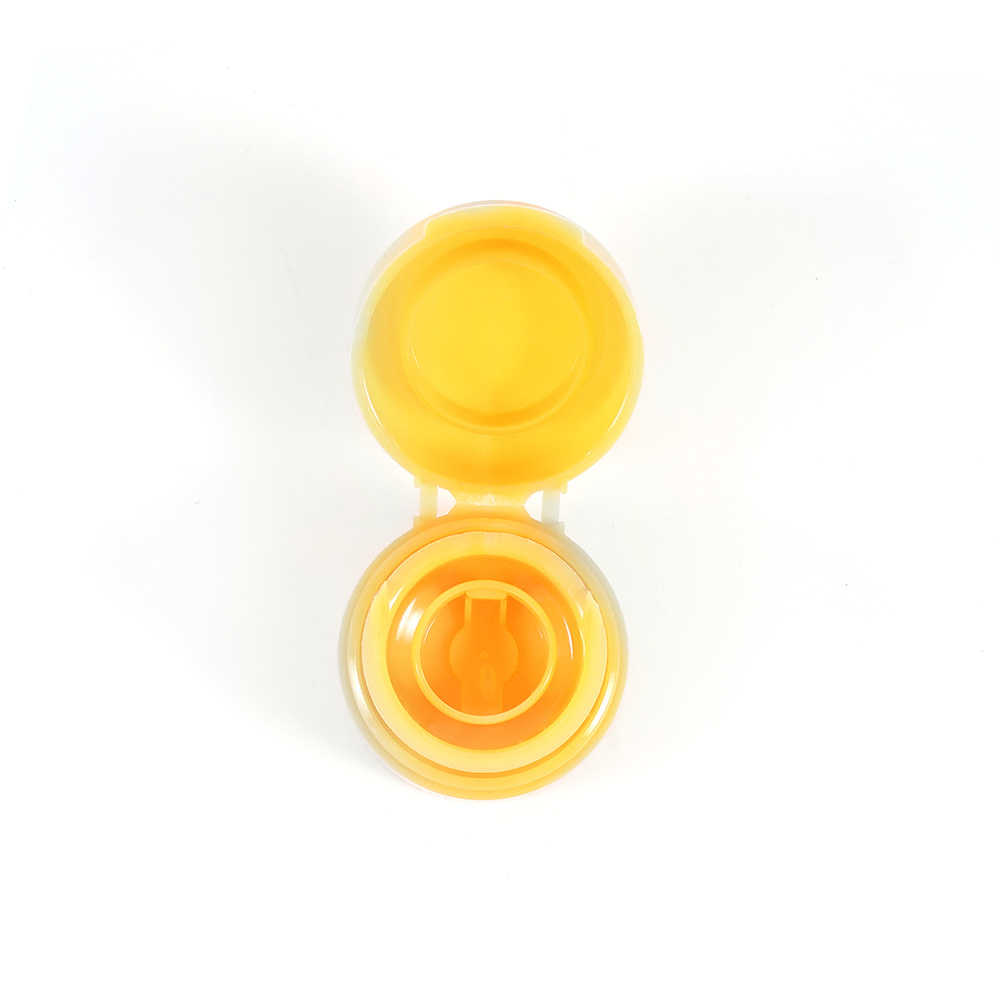

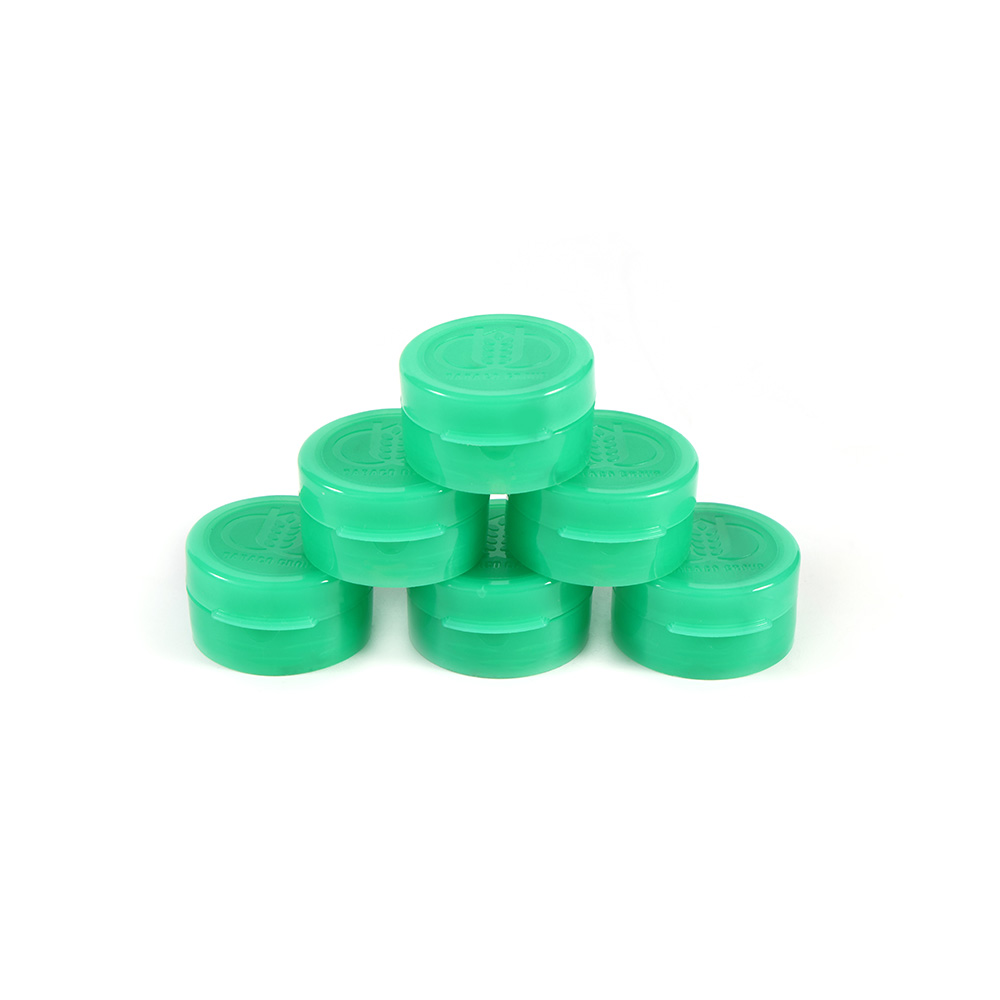

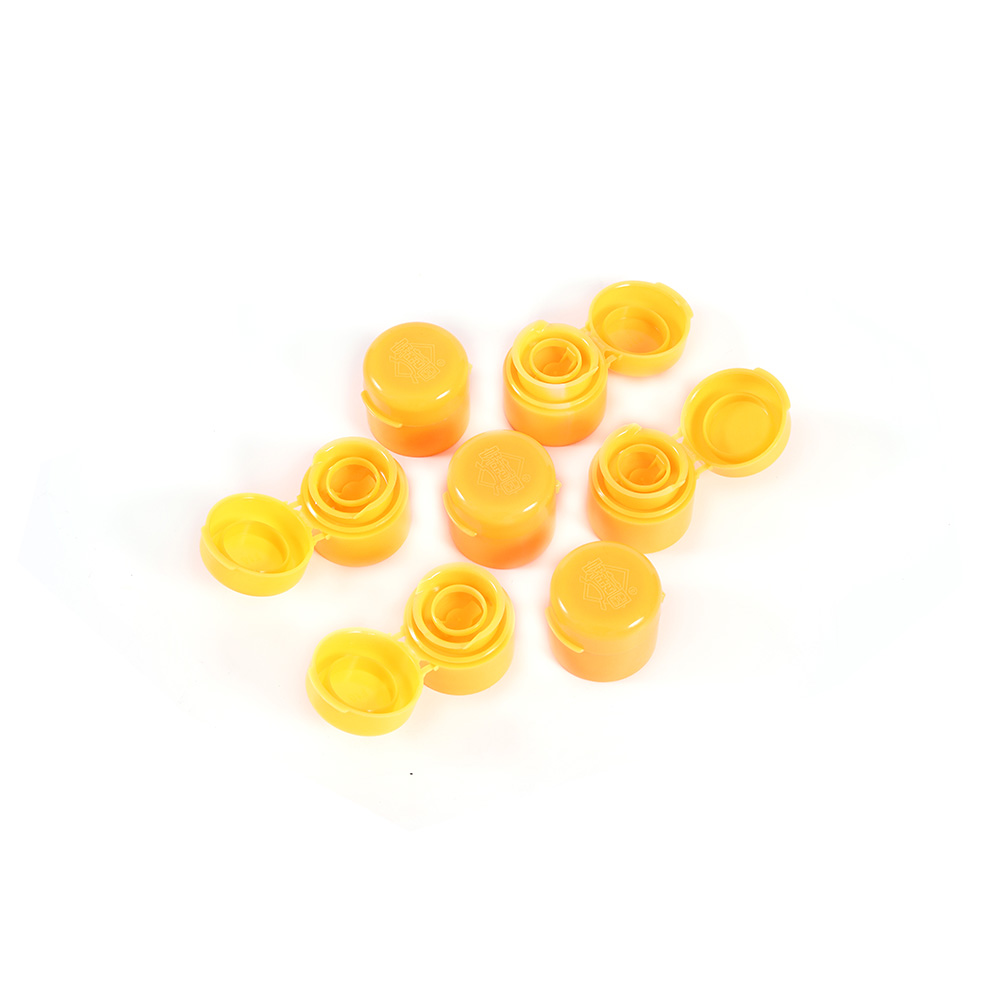

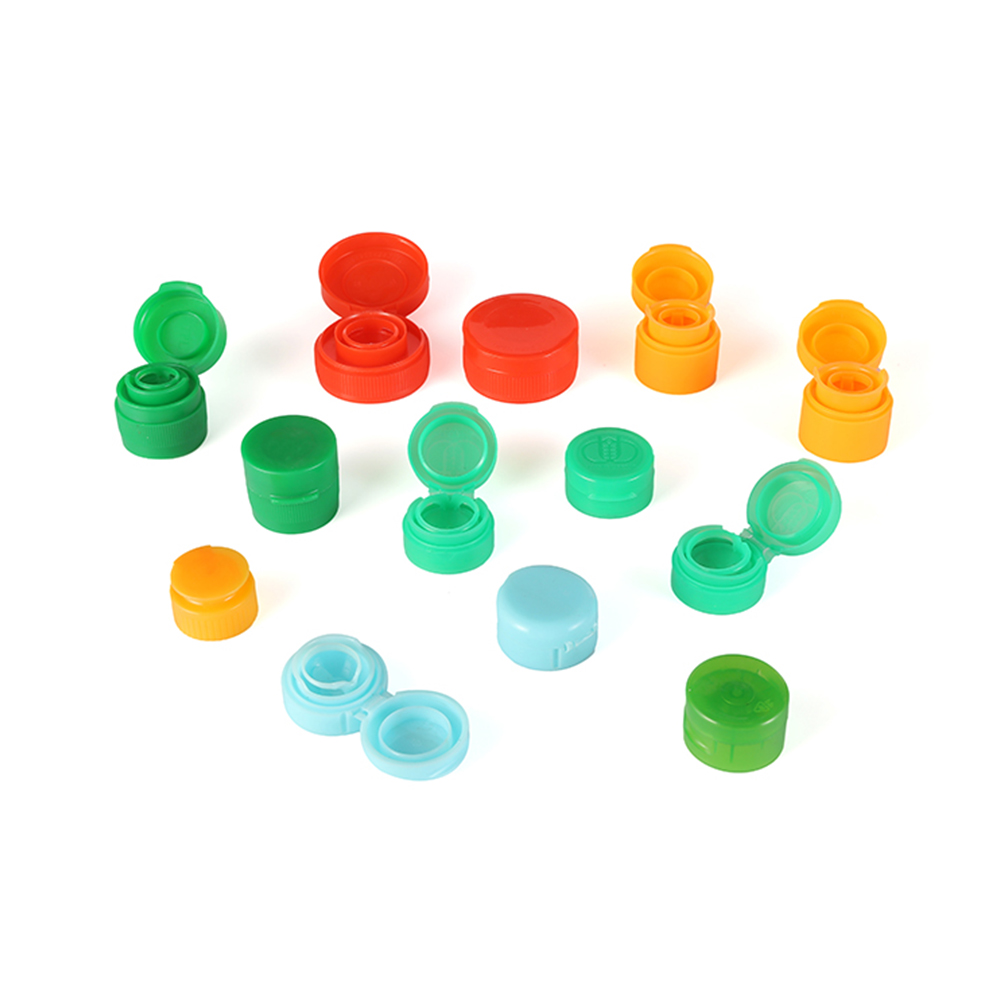

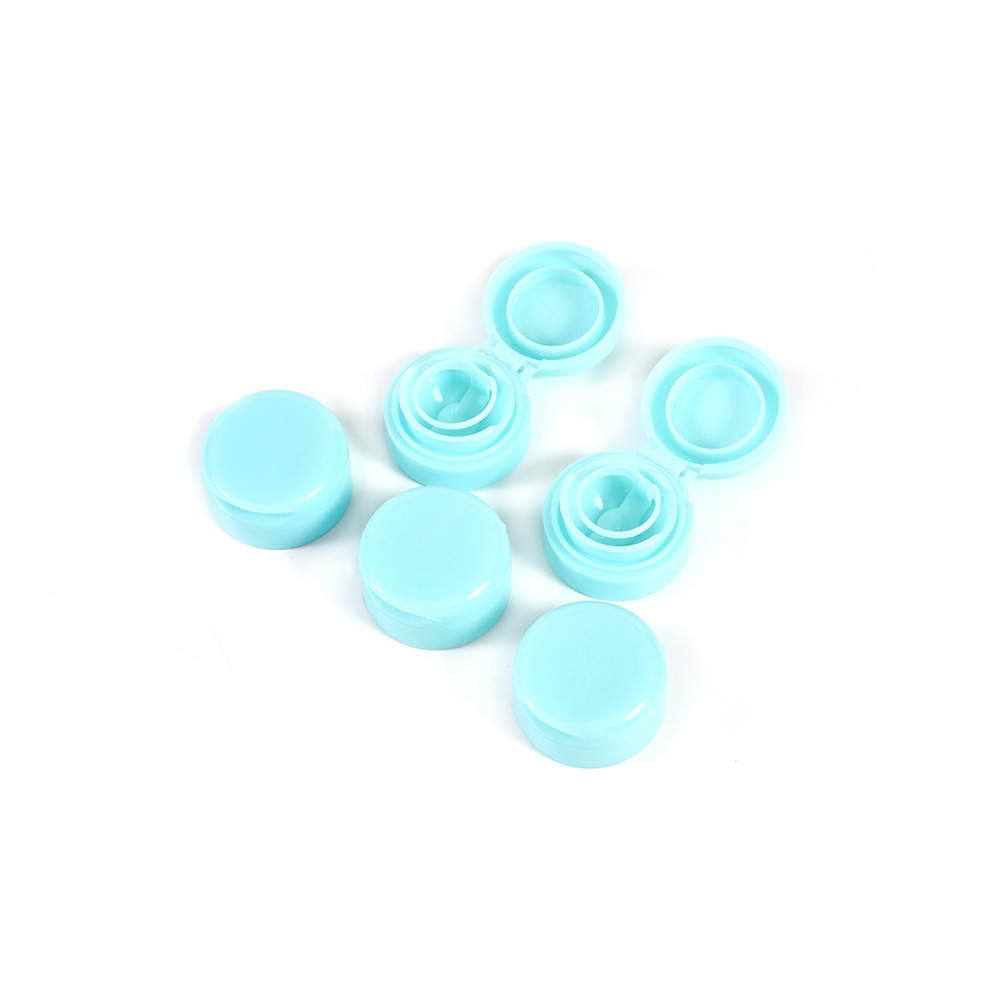

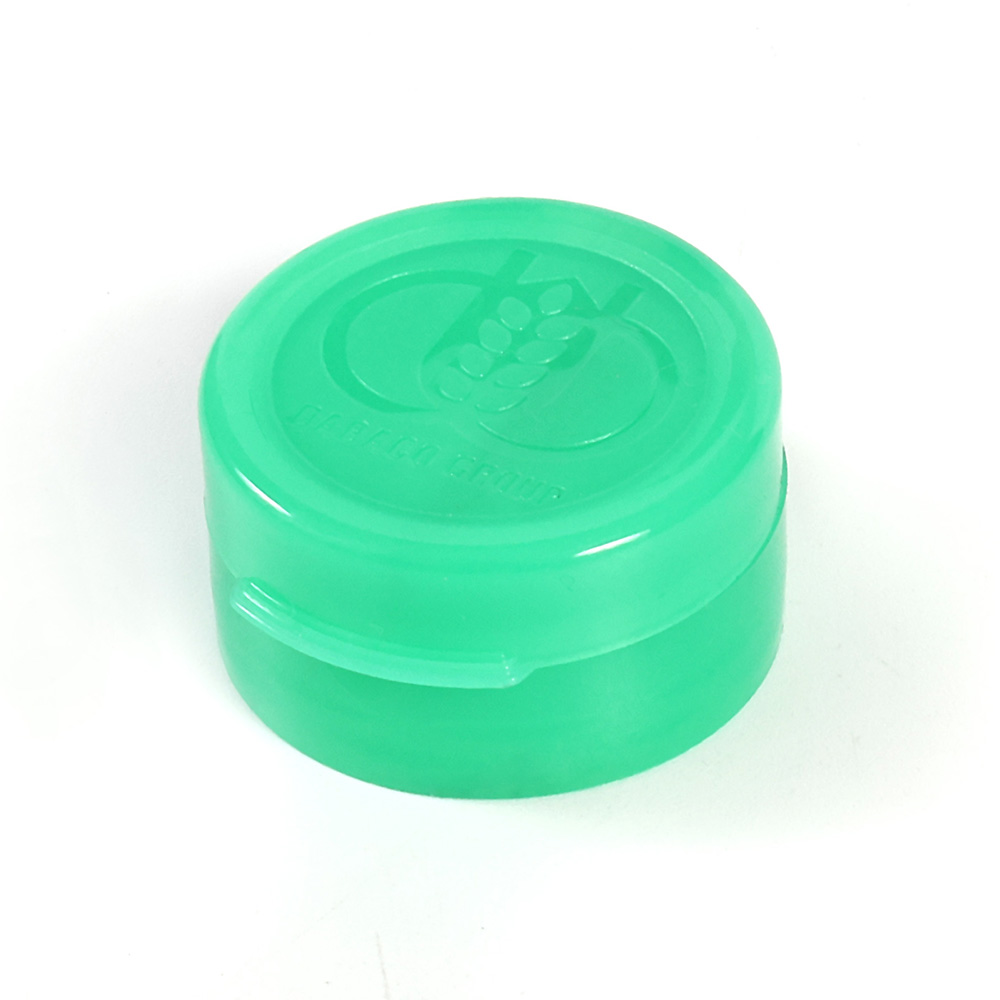

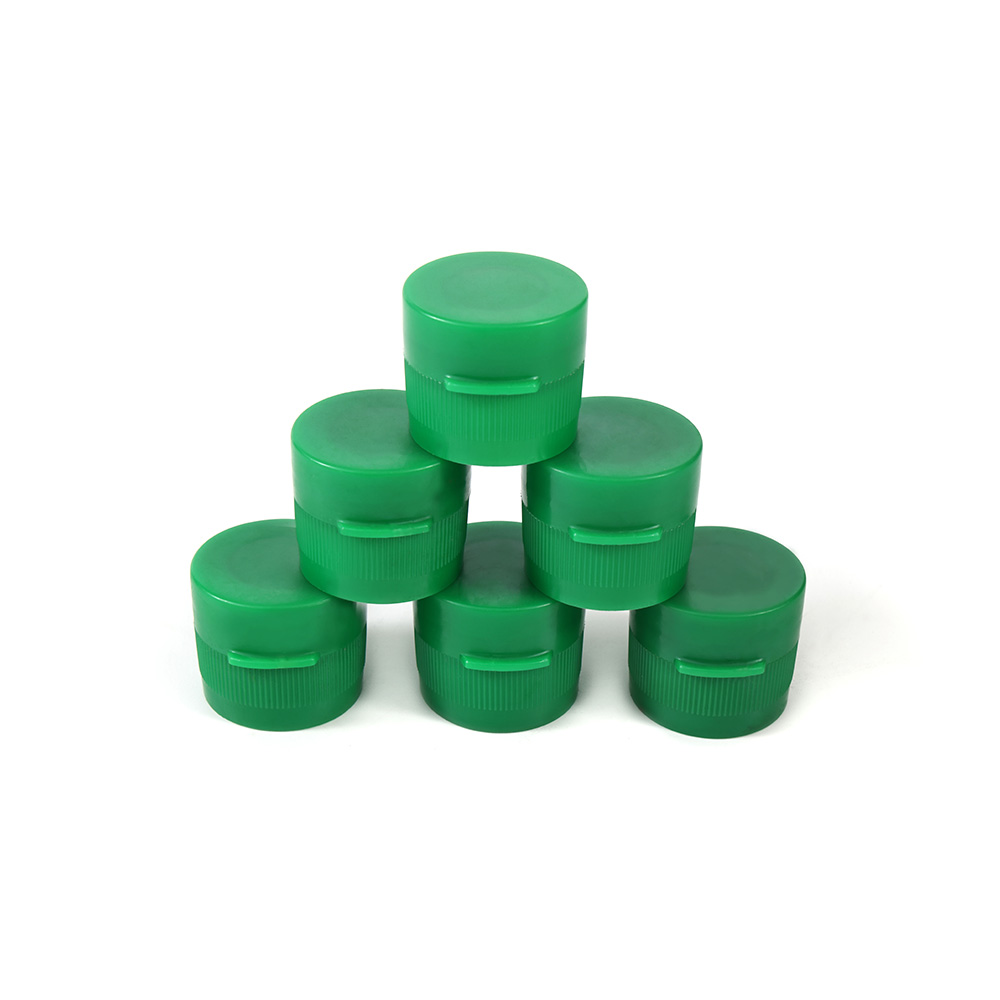

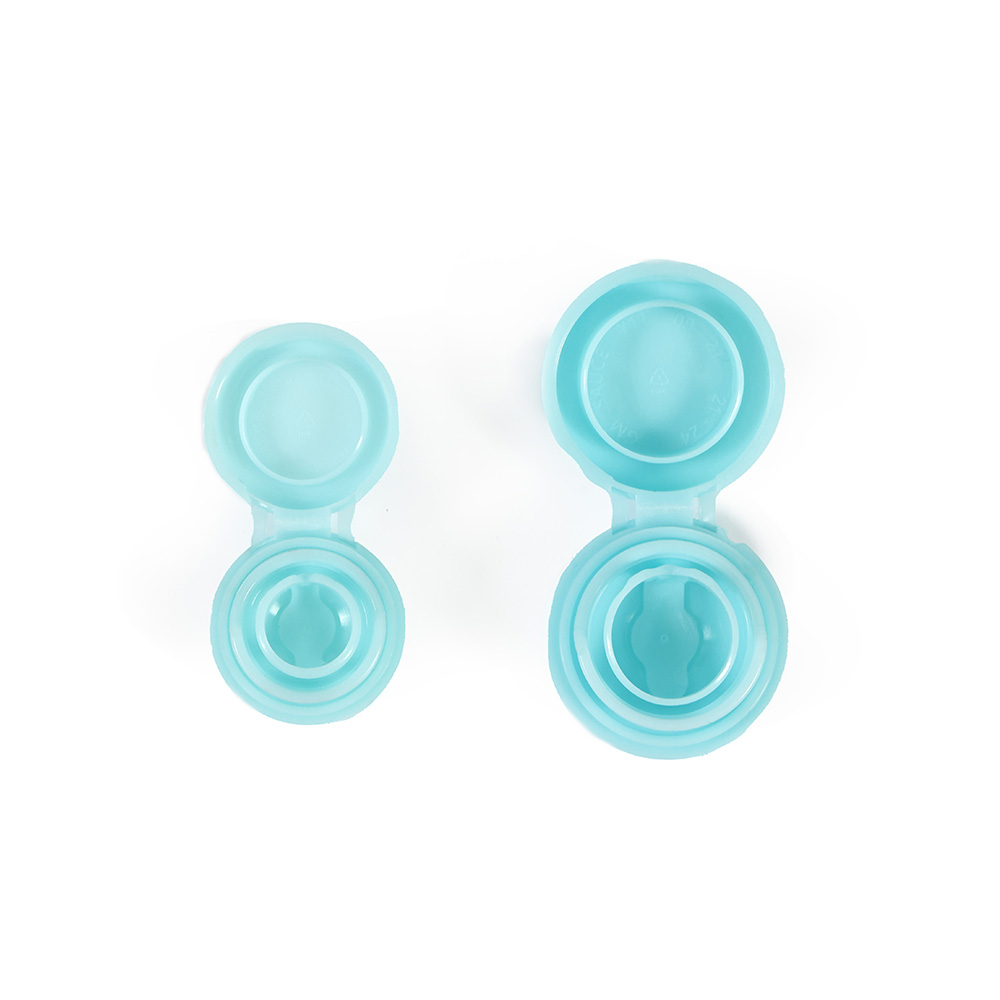

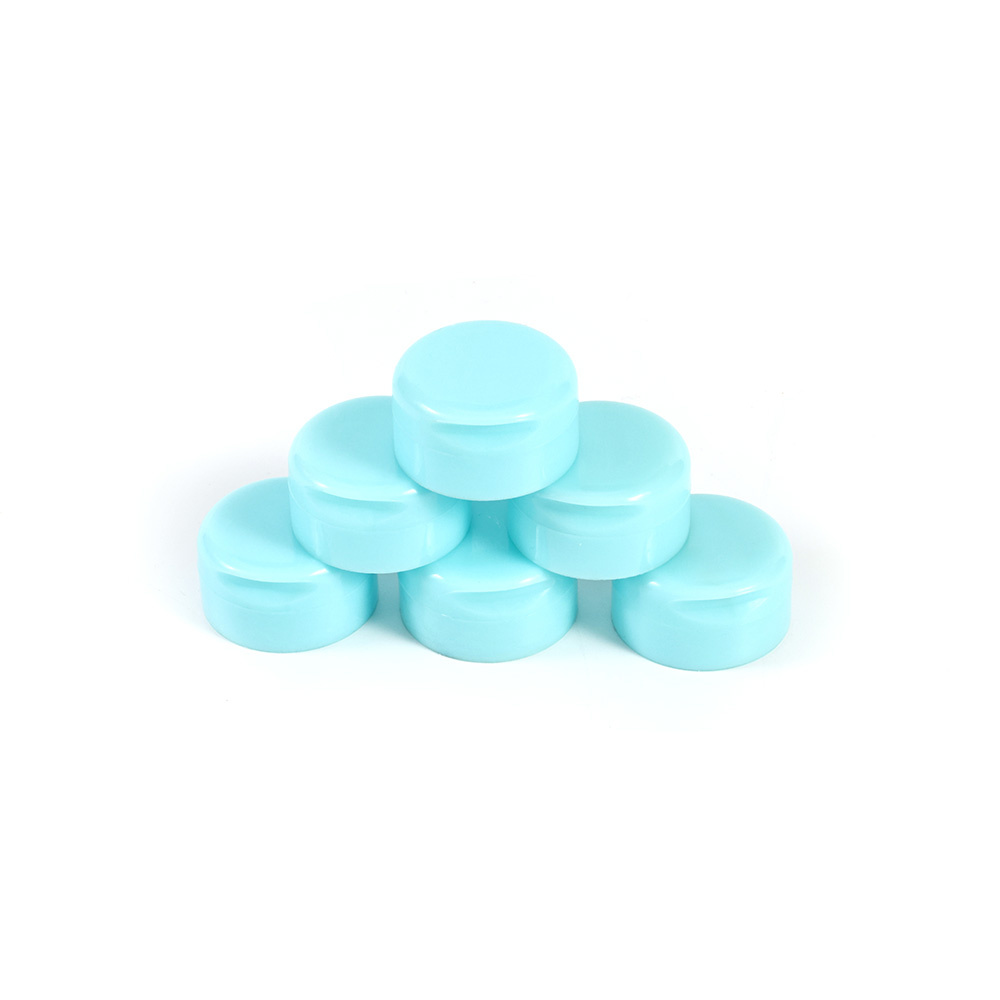

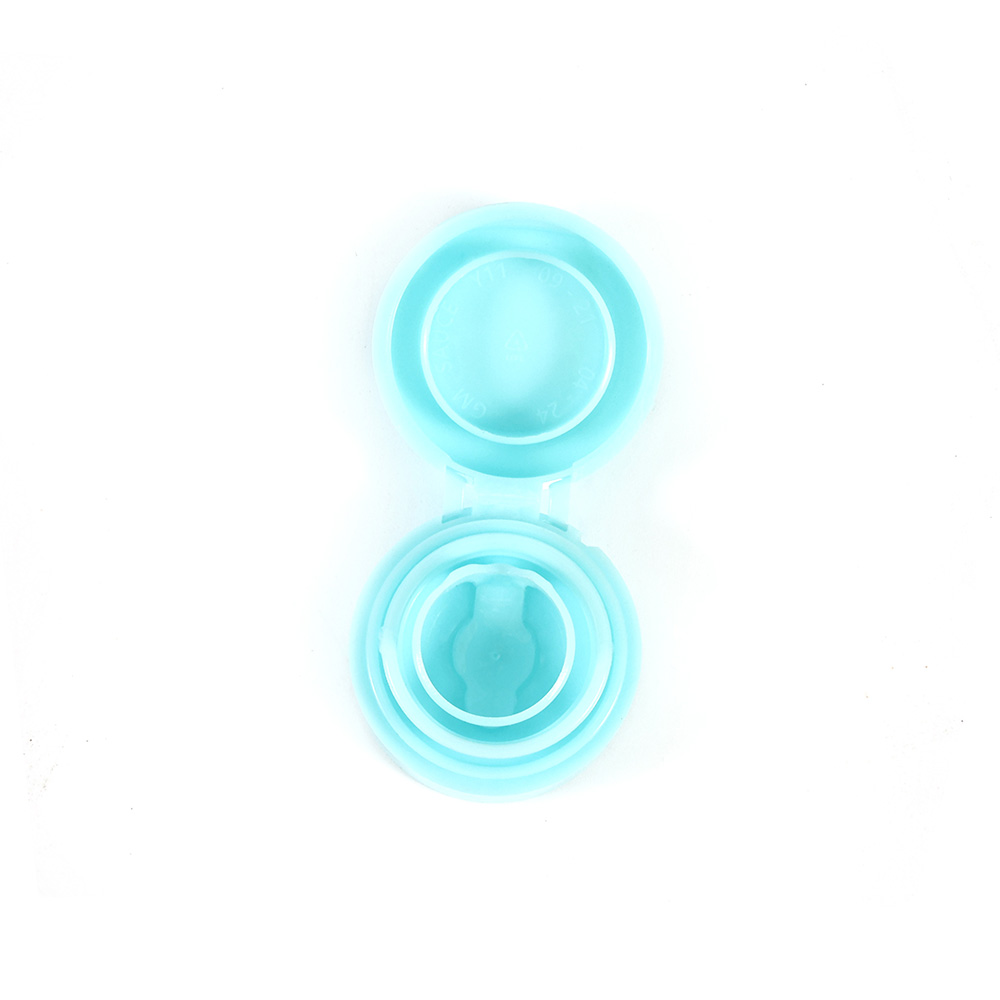

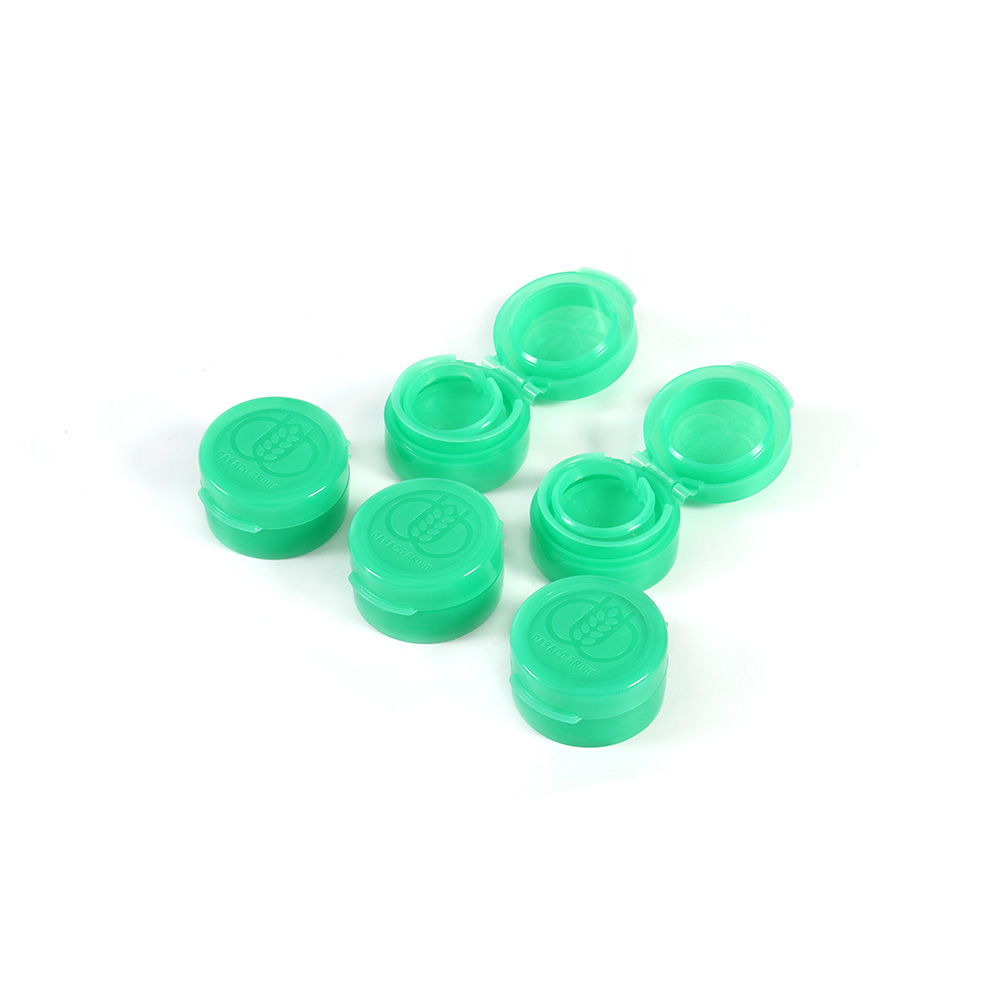

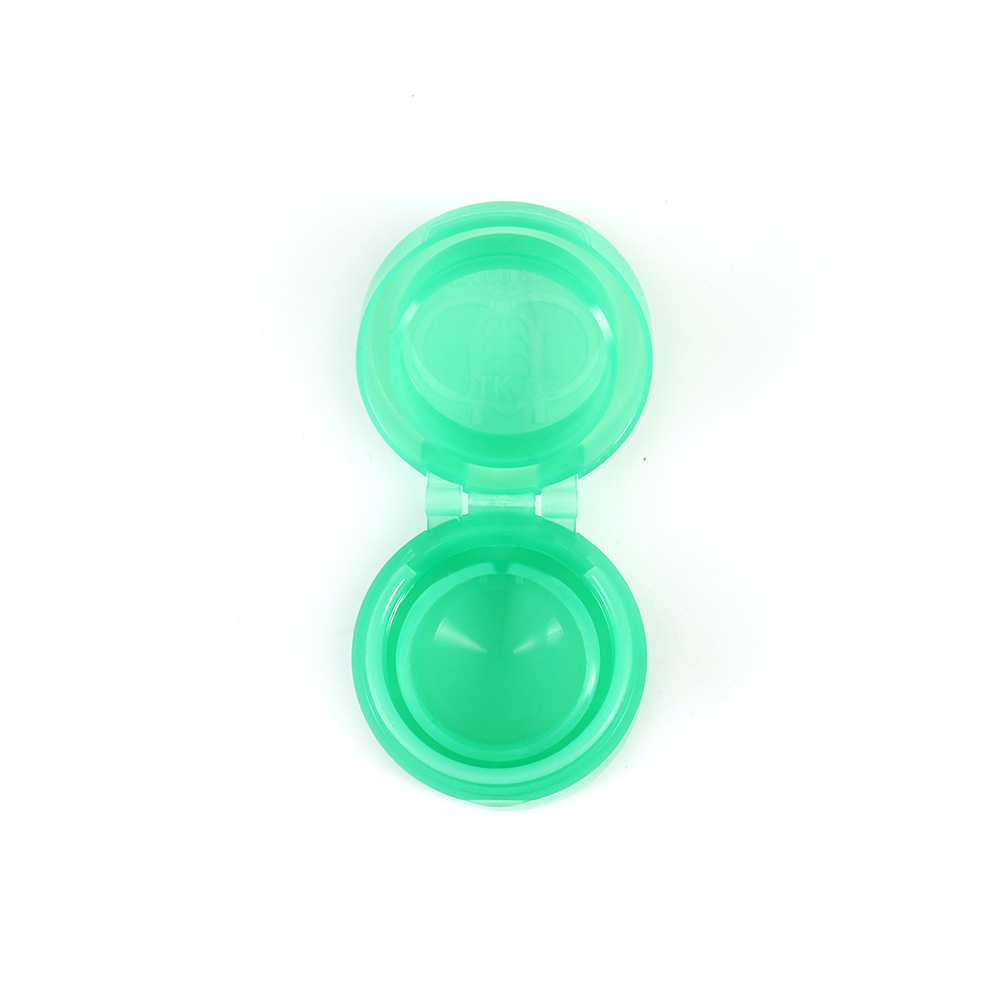

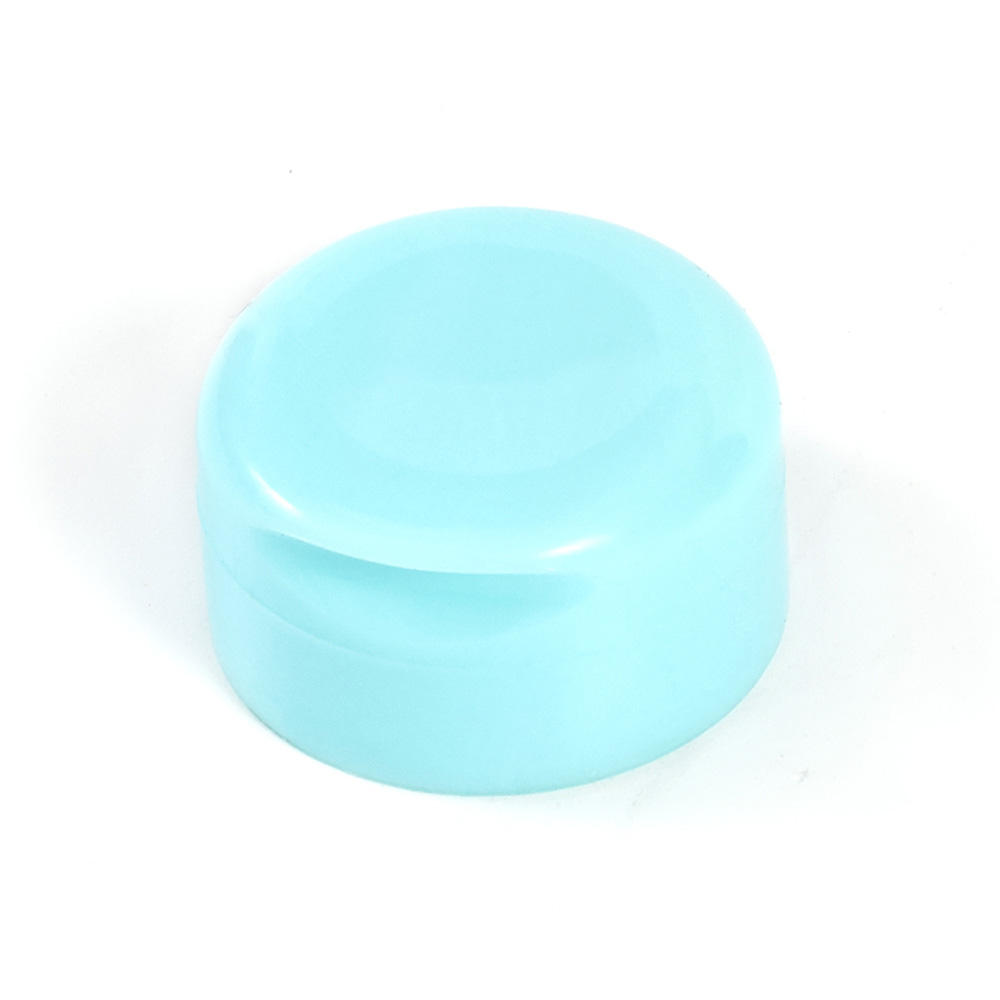

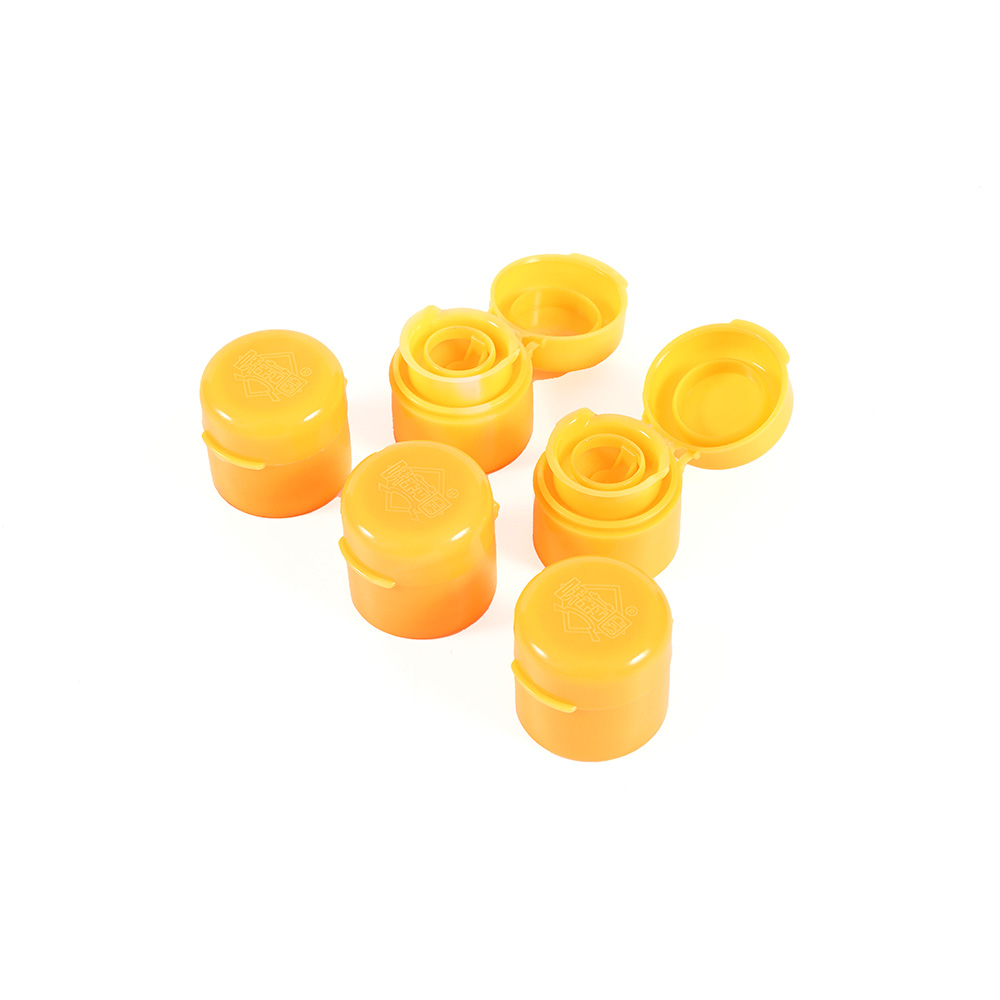

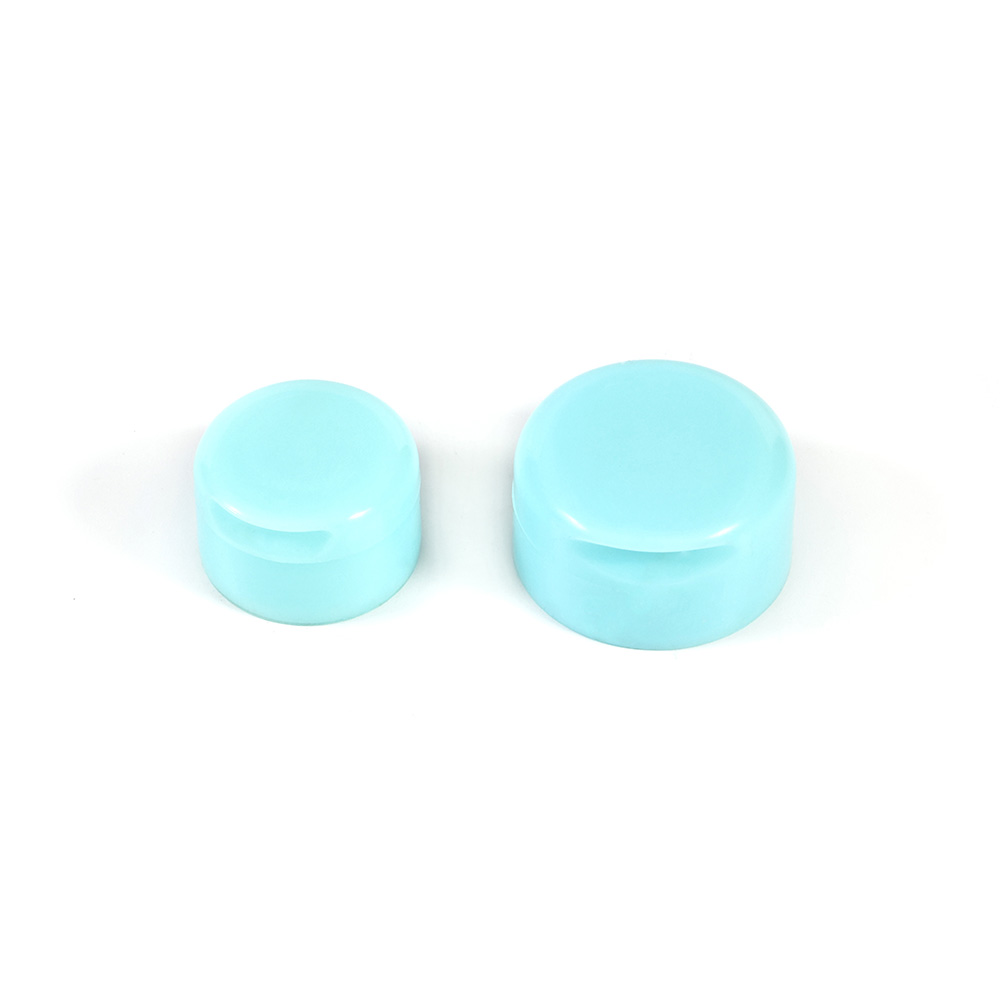

Soy sauce cap mould

Mould name

Soy sauce cap mould

Cap neck size

28MM  32MM

Cap material

LDPE

Mould cavity

8cavity ,16cavity,24cavity,32cavity,48cavity

Insert material

Cavity : S136,   Hardness :47-50°  ;

Core:H13 ,Hardness 47-50 °;

Core surface need nitriding or QPQ treatment  ，It is according to the mould parts hardness request ,after treatment the surface hardness around 60-90 °

Mould plate material

P20  718  S136  according to client’s request

Runner type

Cold runner / hot runner , according to client’s request

Hot runner system

The temperature difference under controlling within1℃difference it makes sure that the raw material cann’t be burnt inside of hot runner. the wastage will be kept less than 1% .

Mould spare parts

8 cavity : 1 set spare parts  ; 16 cavity :2 sets spare parts;…….

Mould package

Wooden box

Warranty

1 year or 1 million shots

Mould  delivery time

45-60days
